Vacuum Workholding Solution
Heated Vacuum Table

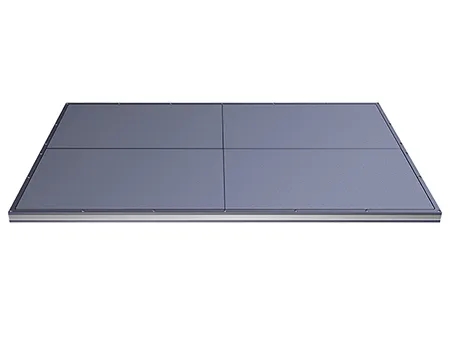

Heated vacuum table is an industrial workholding platform that combines precise temperature control, strong vacuum adsorption, and a lightweight structural design. It is built for precision processes that require stable heating or constant-temperature operation, helping simplify production steps and improve processing efficiency.
The heated vacuum table is suitable for mobile phone screen separation, LED/LCD screen processing, and restoration work for antique calligraphy and paintings applications.
A heated vacuum table is a key component for maintaining print quality in 3D printing applications. It provides a stable temperature environment while offering high flatness, heat resistance, and efficient heat conduction to meet the processing requirements of different printing materials.
This 21 × 21cm mini heated vacuum table is designed for compact precision heating applications. With fast and uniform temperature control from 0–150°C, it is suitable for laboratories, DIY workstations, and integration with small equipment.
- Adaptability for various processing methods Our heated vacuum tables can be used in conjunction with various processing equipment, including laser cutting machines, CNC machining centers, UV printers, and more, making them highly versatile across different industries.
- Customization services We offer customized heated vacuum tables, designing the table’s size, suction power, heating temperature, and other parameters based on your specific needs to ensure optimal performance.
- Flatness precision: Flatness level can reach ≤0.1mm in both cold and heated operating conditions, with heated-state customization available to support stable processing accuracy.
- Adjustable heating temperature Temperature control up to 150°C is available, with higher temperatures customizable according to specific process requirements. This makes the table suitable for a wide range of heat-sensitive substrates.
- Uniform heat distribution Integrated 40mm heating-tube design improves heat transfer across the working surface, helping materials heat evenly and reducing the risk of deformation.

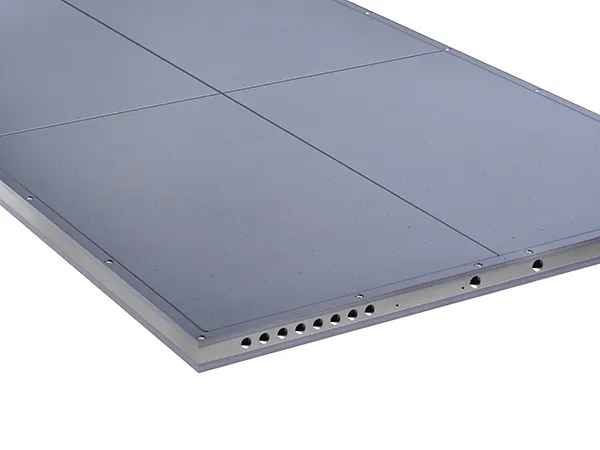

- Lightweight, rigid distribution Aluminum honeycomb core composite panel providing a balance of low weight and high rigidity for easier table installation, maintenance, and integration into existing equipment.

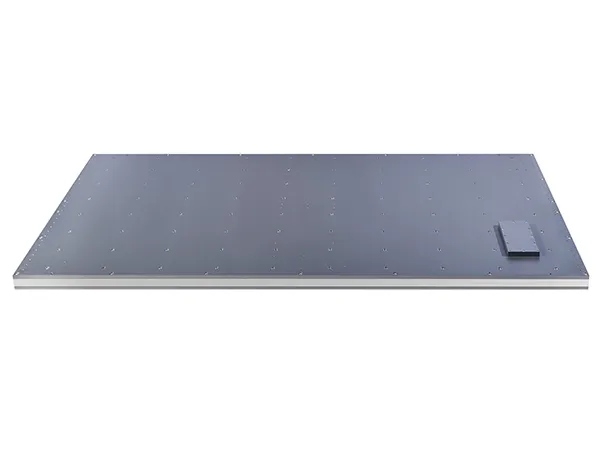

- Stable vacuum holding Balanced airflow across the full working area provides strong and uniform suction, keeping materials firmly in place during heated processing.
Our heated vacuum tables are ideal for material handling in various kinds of precision applications. They provide stable and secure hold-down, ensuring accurate positioning during processes such as biological experiments, 3D printing, laboratory tasks, and more. With their precise temperature control, they prevent material deformation and improve processing efficiency across different applications.
We offer full customization based on your needs, including:
- Vacuum table dimensions and specifications
- Vacuum hole diameter and spacing
- Suction area
- Suction hole diameter
- Number of suction holes
- Connection methods
- Custom zones for independent suction or non-suction areas
Straight holes
Large conical holes
Small conical holes
Large & small holes (eccentric)
Small conical holes (staggered)
Surface Treatment (hard anodized, PVDF coated, bare aluminum surface)
Rail Machining

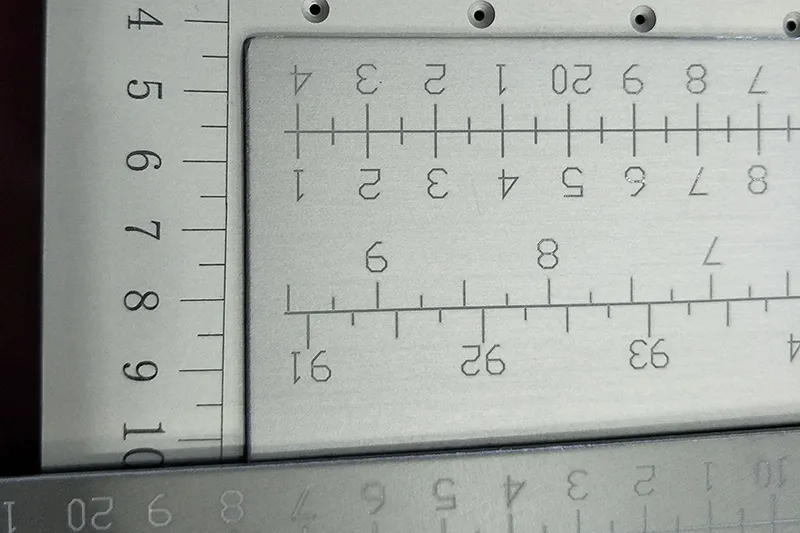

Logo & Scale Marking
Custom Vacuum Table Shape
Positioning Slot

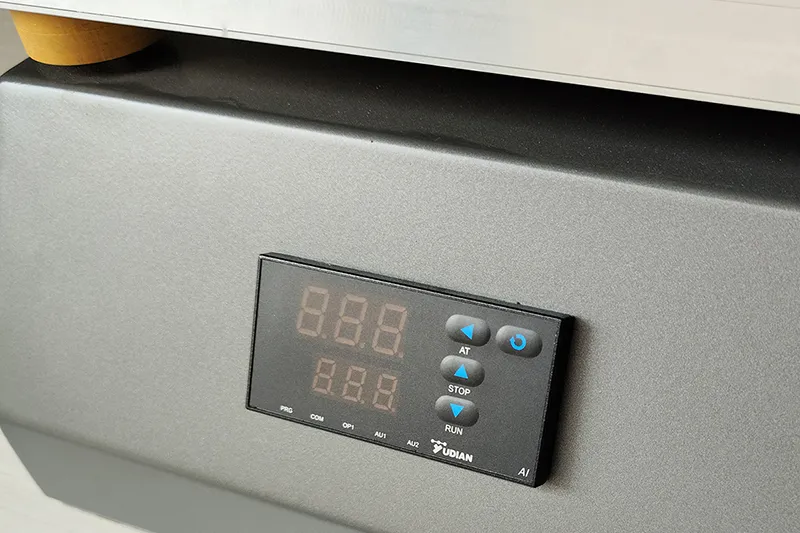

Heating temperature adjustment
- Customized vacuum hold-down tables:
We design and manufacture customized vacuum tables based on the specific needs of our clients. These vacuum tables can accommodate materials of various sizes, shapes, and types, ensuring stability and precision during the printing process. The optimal flatness of our vacuum tables can even reach 0.10mm, guaranteeing high-quality results.
- Comprehensive solutions:
We provide full vacuum work-holding solutions for the printing industry, including technical support and consultation services. Our solutions address material hold-down, surface flattening, and improved printing precision, helping customers overcome common challenges and improve overall production efficiency.
- Technical support and product design:
We offer technical support and training services to help customers understand and effectively use their vacuum tables. You can contact our sales team to discuss your requirements and budget. With our deep industry expertise, we'll work closely with you to craft a tailored solution, ensuring the best possible outcome for your project. We provide flexible customization, with the ability to manufacture vacuum tables up to 4000mm x 2100mm (larger sizes available upon request).
- Continuous research and innovation:
We are committed to research and innovation, holding over 60 patents and continually introducing new technologies and products to meet the evolving needs of the printing industry. Through collaborations with research institutions such as Sun Yat-sen University and South China University of Technology, we’ve made significant technological advancements in the vacuum hold-down table industry, enhancing both product performance and market competitiveness.
- After-sales support:
We offer comprehensive after-sales service, with a dedicated support team that responds quickly to customer needs, ensuring customer satisfaction at every stage.
